Non Woven Bag Making Machine

C700/800 Non Woven D-Cut Bag Making Machine

Model: SMART 17

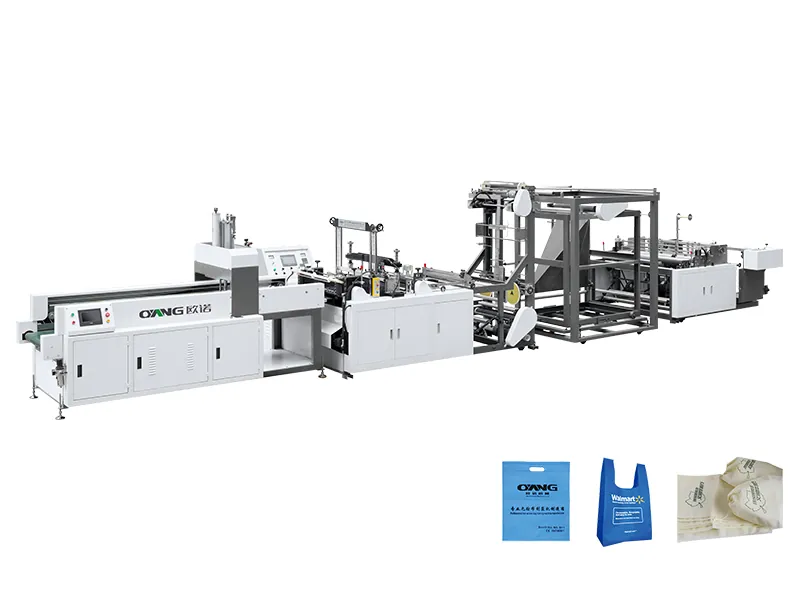

SMART 17-C700/800 is a non-woven D-cut bag making machine for automatic production from non-woven fabric rolls.

Model No. SMART 17Brand Ounuo / OyangHS Code 8449009000Stock Project-based

40-100 pcs/minC700 / C8001250 / 1450 mm roller widthD-cut bag line

Principais características

SMART 17-C700/800 is a non-woven D-cut bag making machine for automatic production from non-woven fabric rolls.

Uses non-woven fabric rolls to produce bags automatically.

Supports T-shirt bag, handle bag, D-cut bag and shoes bag production.

Suitable for factories starting non-woven D-cut bag production with controlled investment.

C700 and C800 configurations cover different roller width and output requirements.

Use the video area to show fabric feeding, bag forming, D-cut punching, sealing and finished bag collection.

Play

Configuration can be selected by roller width, bag width, bag height and power requirement.

Suitable for T-shirt bags, handle bags, D-cut bags and shoes bags.

Configuration can be selected by roller width, bag width, bag height and power requirement.

Model No.	SMART 17
Model	C700 / C800
Finish Products	T-shirt bag, handle bag, D-cut bag, shoes bag
Roller Width	1250 mm / 1450 mm
Bag Making Speed	40-100 pcs/min
Bag Width	200-500 mm / 100-800 mm
Bag Height	200-800 mm / 200-580 mm
Max Gusset	0-180 mm
Power Supply	220V 50Hz
Total Power	10 kW / 12 kW
Overall Size	7600 x 2100 x 2000 mm
Machine Weight	2300 / 2500 kg
