3D One-Time Forming
The line completes non-woven box bag forming and online handle welding in one continuous process.
Non Woven Bag Making Machine
Automatic Non-Woven Box Bag Making Machine With Handle Online
Model: OYANG 17 Leader
OYANG 17 Leader is a 3D one-time forming non-woven box bag machine with online handle welding, designed for efficient, stable production of shopping, food, gift and takeaway bags.
40-90 pcs/min520-1160 mm roller width50 kW total powerOYANG 17 Leader
Características principales
OYANG 17 Leader is a 3D one-time forming non-woven box bag machine with online handle welding, designed for efficient, stable production of shopping, food, gift and takeaway bags.
Fast Mold Change
Reference configuration supports quick mold change in about 20 minutes for flexible order switching.
Labor Saving
Designed to replace large manual sewing workflows and improve daily output.
Wide Bag Application
Used for takeaway food, tea, wine, beverage, clothing, footwear, gift and advertising packaging.
Video
Use the video area to show roll feeding, bag mouth folding, handle welding, online creasing, cutting, forming, folding and finished bag collection.
Solicitar informaciónPlayDescripción del producto
Optional configuration can include online handle centering, deviation correction at the bag mouth, adhesive tape pasting and electric punching.
Tipo de bolsa
Suitable for shopping bags, clothing bags, food bags, gift bags and takeaway box bags.
Función opcional
Optional configuration can include online handle centering, deviation correction at the bag mouth, adhesive tape pasting and electric punching.
Flujo de producción
Non-Woven Roll Feeding
Tension Control
Bag Mouth Folding

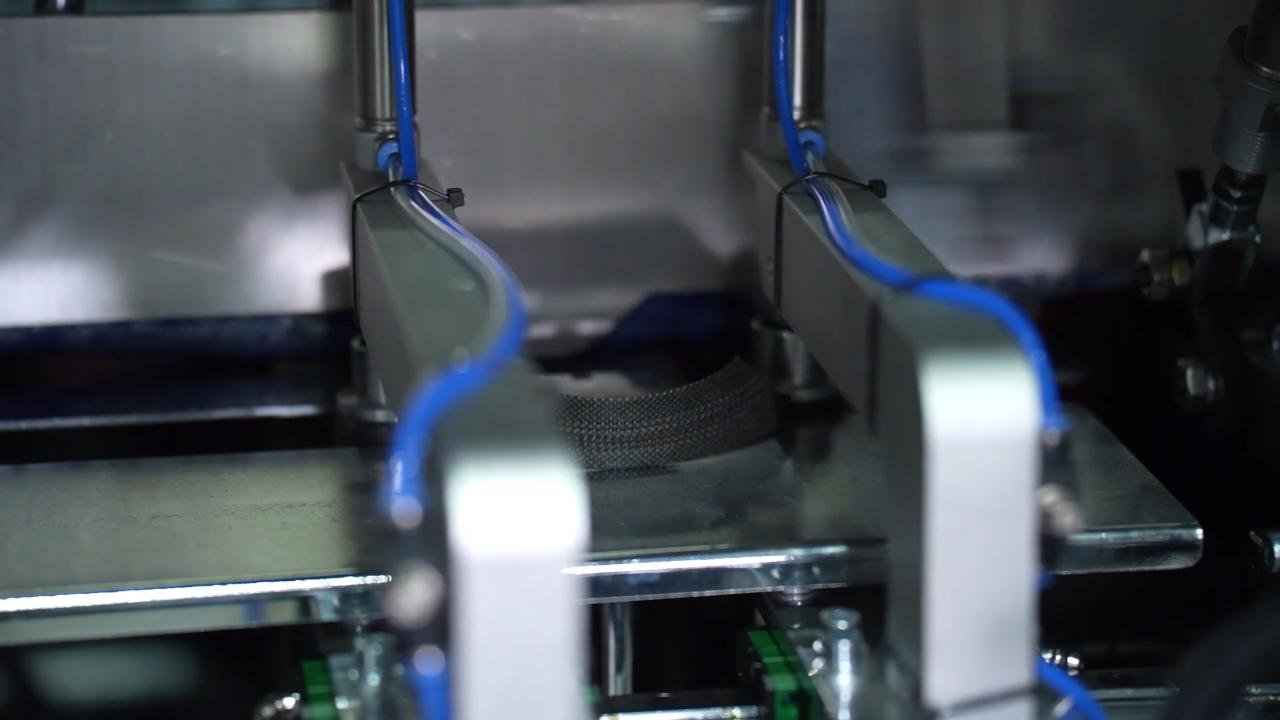

Handle Welding
Online Creasing
Sheet Cutting

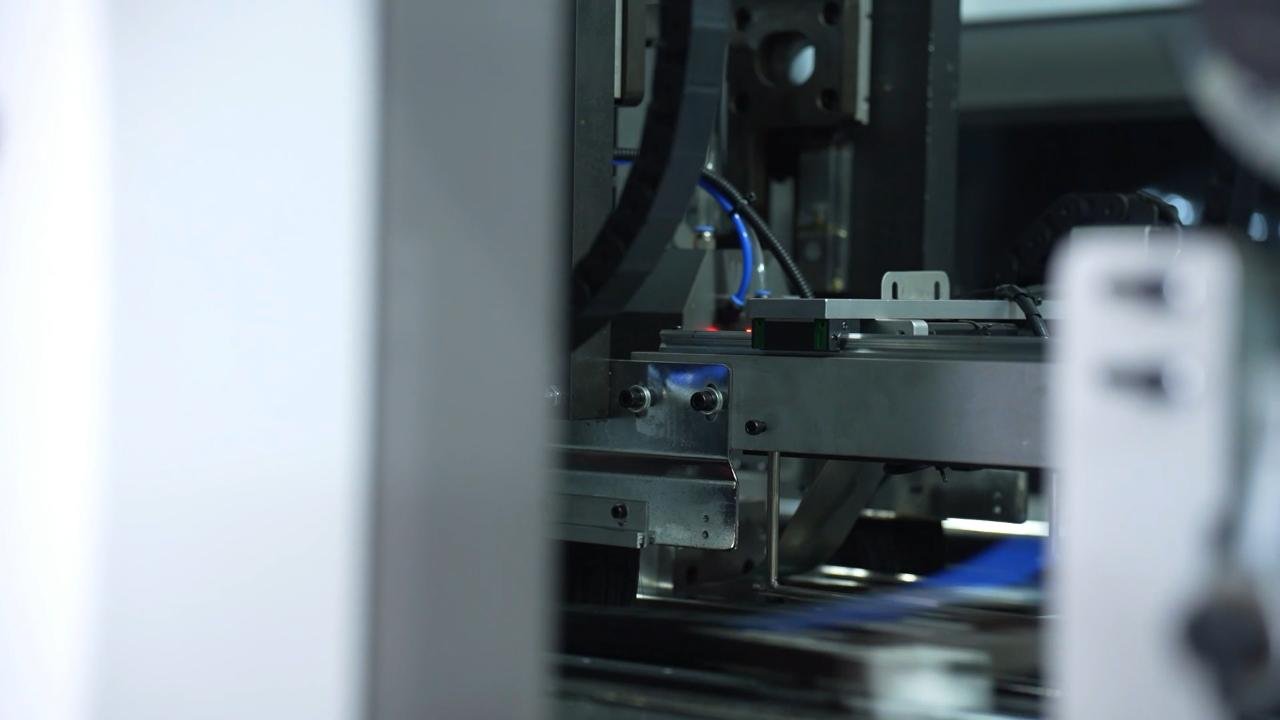

Bag Forming

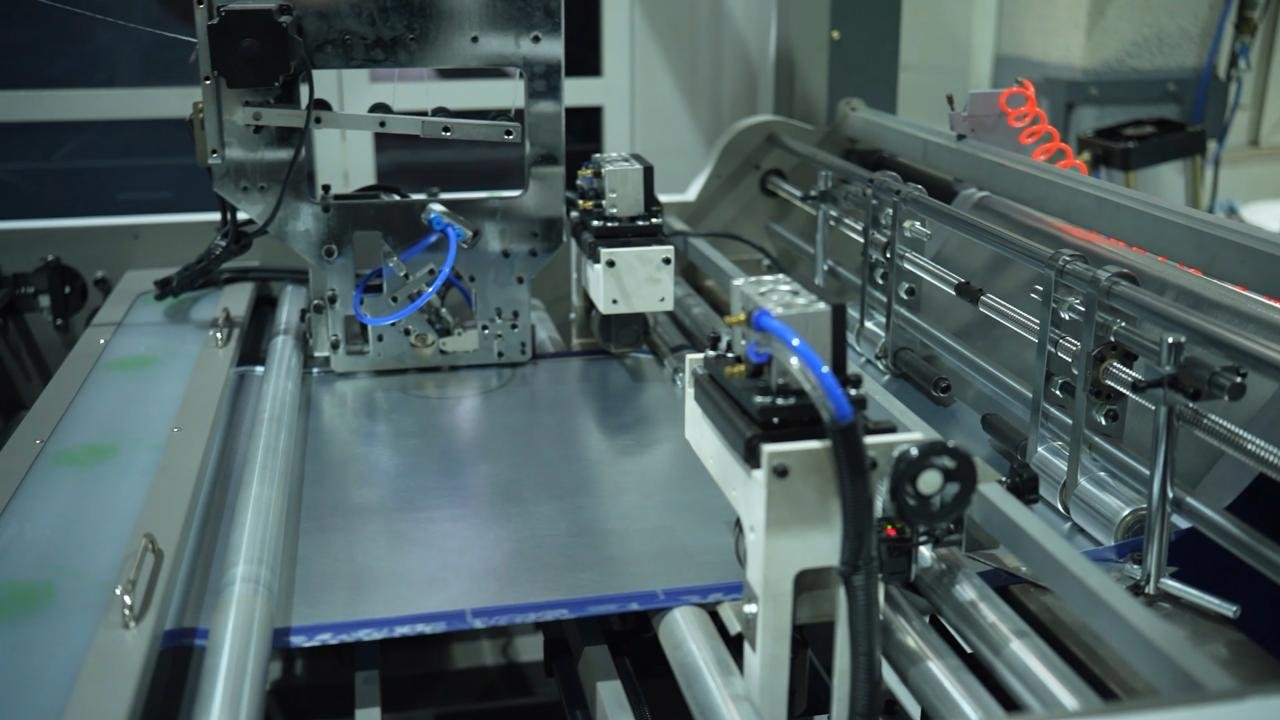

Bag Folding
Collection
Parámetros del producto
| Model No. | OYANG 17 Leader |
|---|---|
| Roller Width | 520-1160 mm |
| Bag Making Speed | 40-90 pcs/min |
| Bag Width | 100-500 mm |
| Bag Height | 220-450 mm |
| Gusset | 80-220 mm |
| Total Power | 50 kW |
| Rated Power | 28 kW |
| Overall Size | 11000 x 6500 x 2650 mm |
| Machine Weight | 10000 kg |
| Handle Length | 380-600 mm |
| Handle Width | 25 / 30 mm |
Imágenes detalladas
Localized product pages present machine modules, production process and optional automation clearly for faster technical evaluation.
